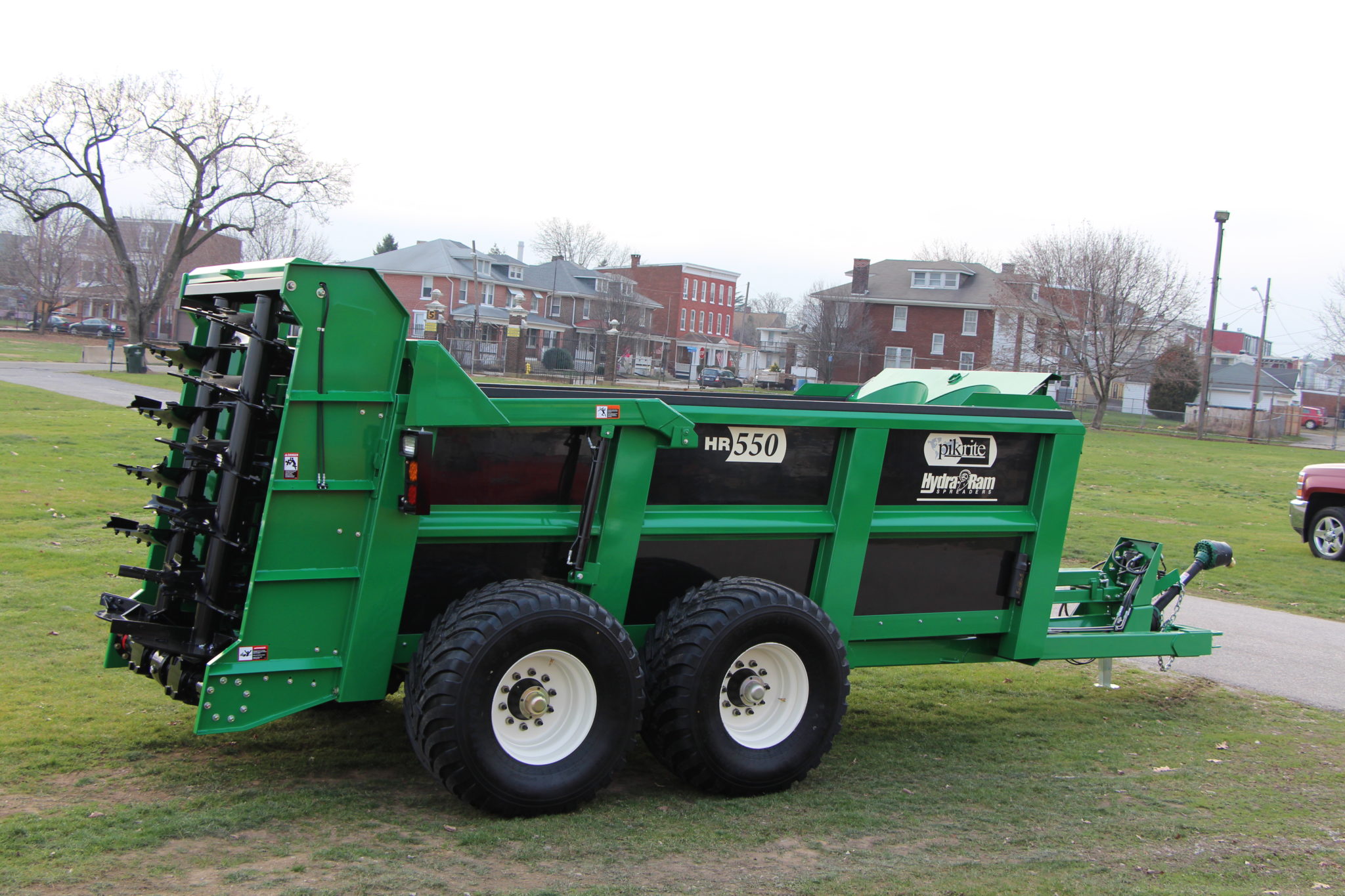

Get the most out of your spreading equipment by investing in a Pik Rite HR 550 Hydra-Ram spreader.
Efficient
•Vertical beaters shred heavy material and provide a wide and consistent spread pattern
•Adjustable pusher speed (0-16 ft. per min.)

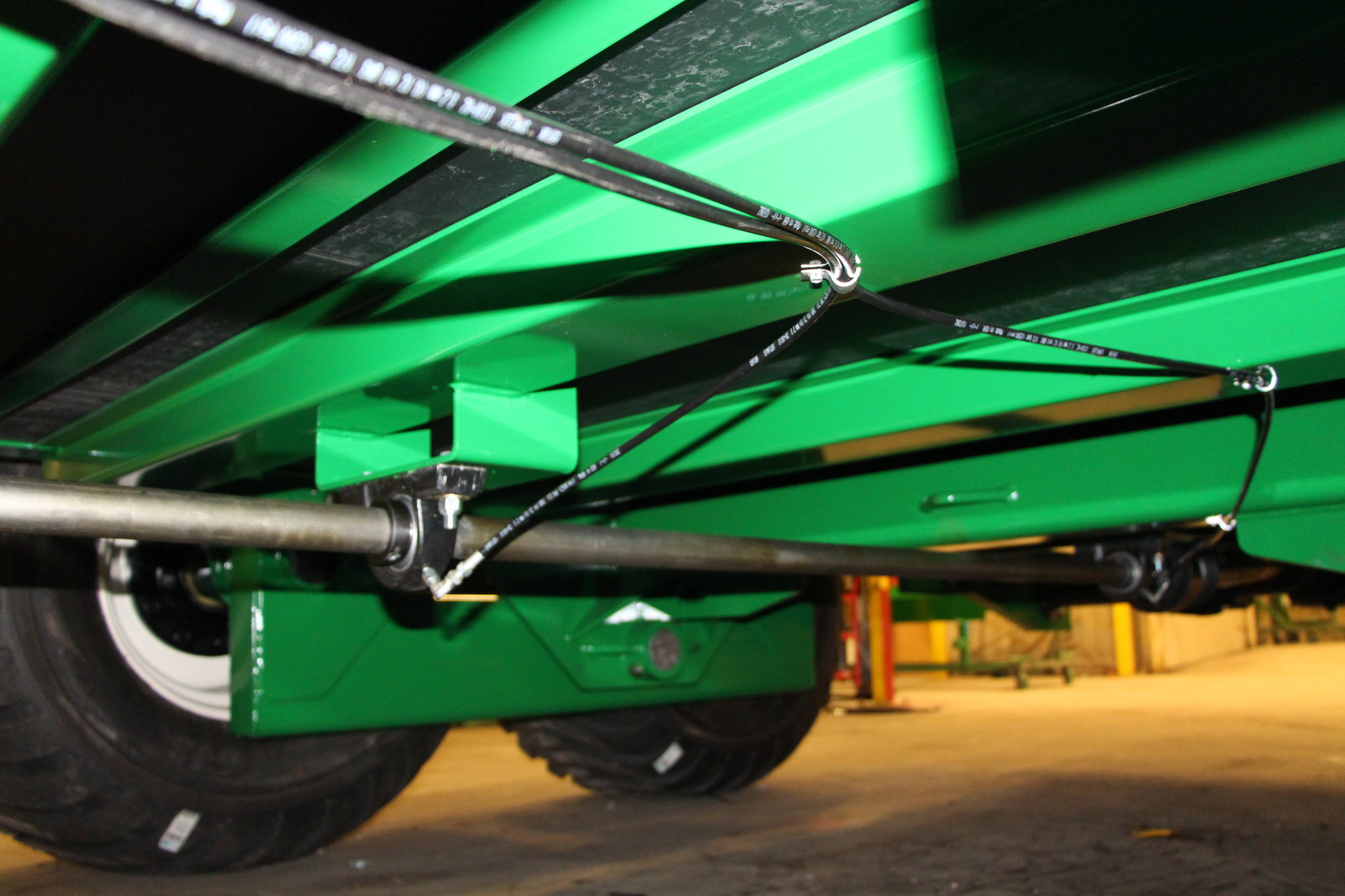

•Heavy duty walking beams
•Road safety and work lights available
•Two-stage push reduces compaction
Durable
•Side wind jack w/ safety chain
•Polylaminate sides & flooring
•Stainless steel hydraulic tubing
Operator Friendly

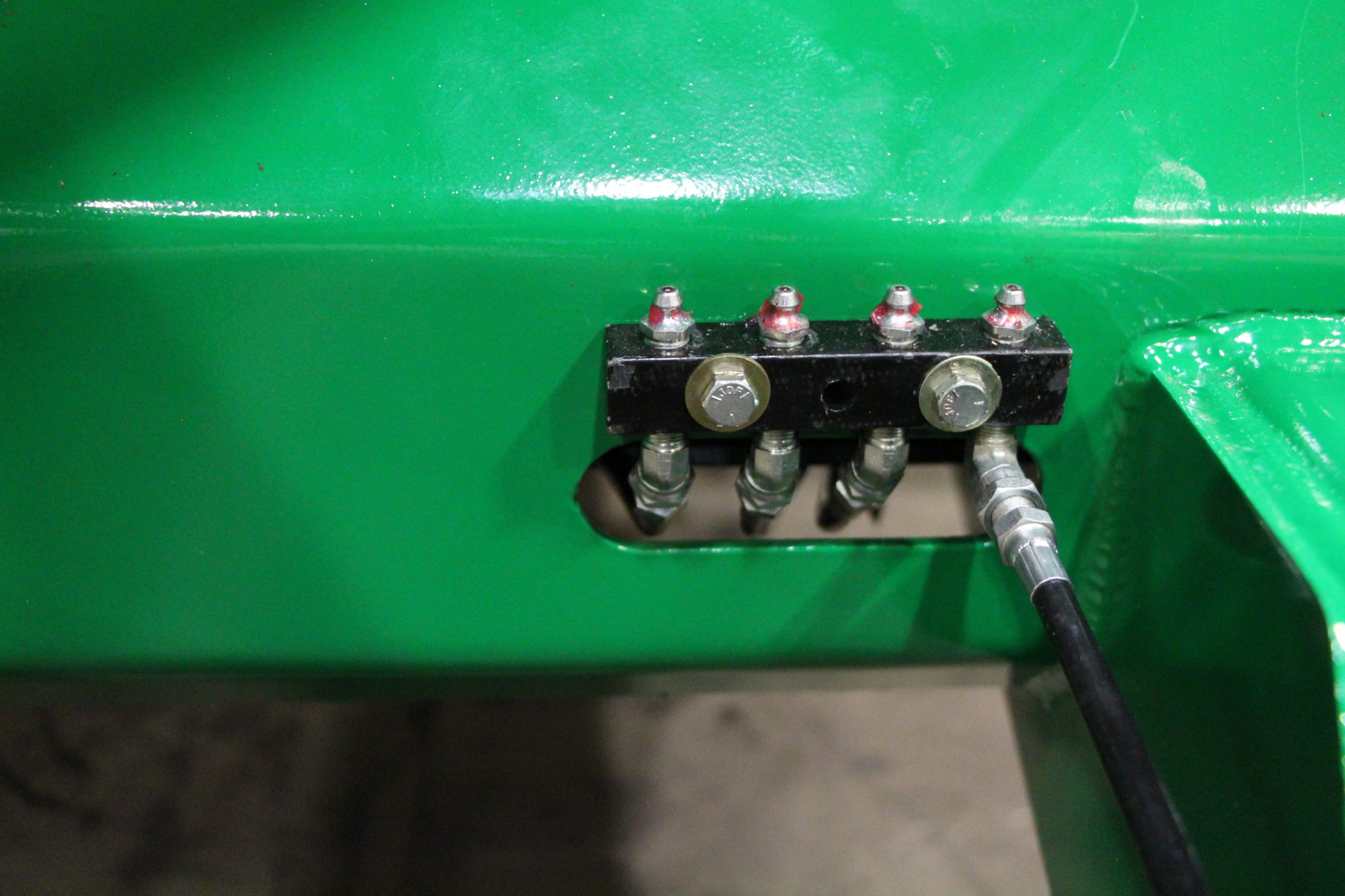

•All bearings have easy access grease fitting banks
•Contoured pusher provides maximum clean-out
•Flow-controller available to meter application
•Available in traditional green, black, red, blue or industrial yellow
For more information or to purchase the Pik Rite HR 550 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
•16.6 ton load carrying capacity
•Direct drive beater system
•Two-stage push reduces moving parts
•Contoured pusher to maximize clean-out
•Quick detach beaters (interchangeable for compost or vertical beaters)
•Weigh scale installation ready
•Optional side-extensions
•Clutch protected drivelines (slip/over-run)
•Proudly made in the USA!
| Struck Level ASAE S324.1 | 435 cu. ft. |
| Heaped SAE S324.1 | 604 cu. ft. |
| Heaped w/ optional side extenions ASAE S324.1 | 668 cu. ft. | Load carrying capacity | 16.6 tons |
| Depth of box, inside | 56″ |
| Width of box, inside | 71″ |
| Length of box, inside | 14′ 8″ |
| Overall width w/ truck tires | 10′ 11″ (425/65R22.5) |
| Overall width w/ flotation tires | 11’ 4” (550/60-22.5) |
| Overall height | 10′ 8” |
| Overall length | 28’ 6″ |
| Loading height | 87” |
| Top of moving panel | 96.5″ |
| Face of moving panel to beater center line | 16’ 4” |
| Beater speed | 420 RPM |
| Number of beaters | 2 |
| Paddles per beater | 36 |
| Fan diameter (upper beater) | 38″ |
| Tractor PTO HP (min.) | 150 HP |
| Unloading speeds | Infinite from 0-16’/min. |
| PTO speed | 1000 |
| PTO shaft diameter | 1 3/8” (1 3/4′) |
| Endgate cylinders | 2 |
| Tare weight | 12,420 lbs. |
