Overview
This spreader comes with a metering guillotine end gate and options for either vertical beaters (pen pack and heavy material) or the Compost Pro unit (poultry litter and lighter dry material)!
Efficient
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 380 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Efficient

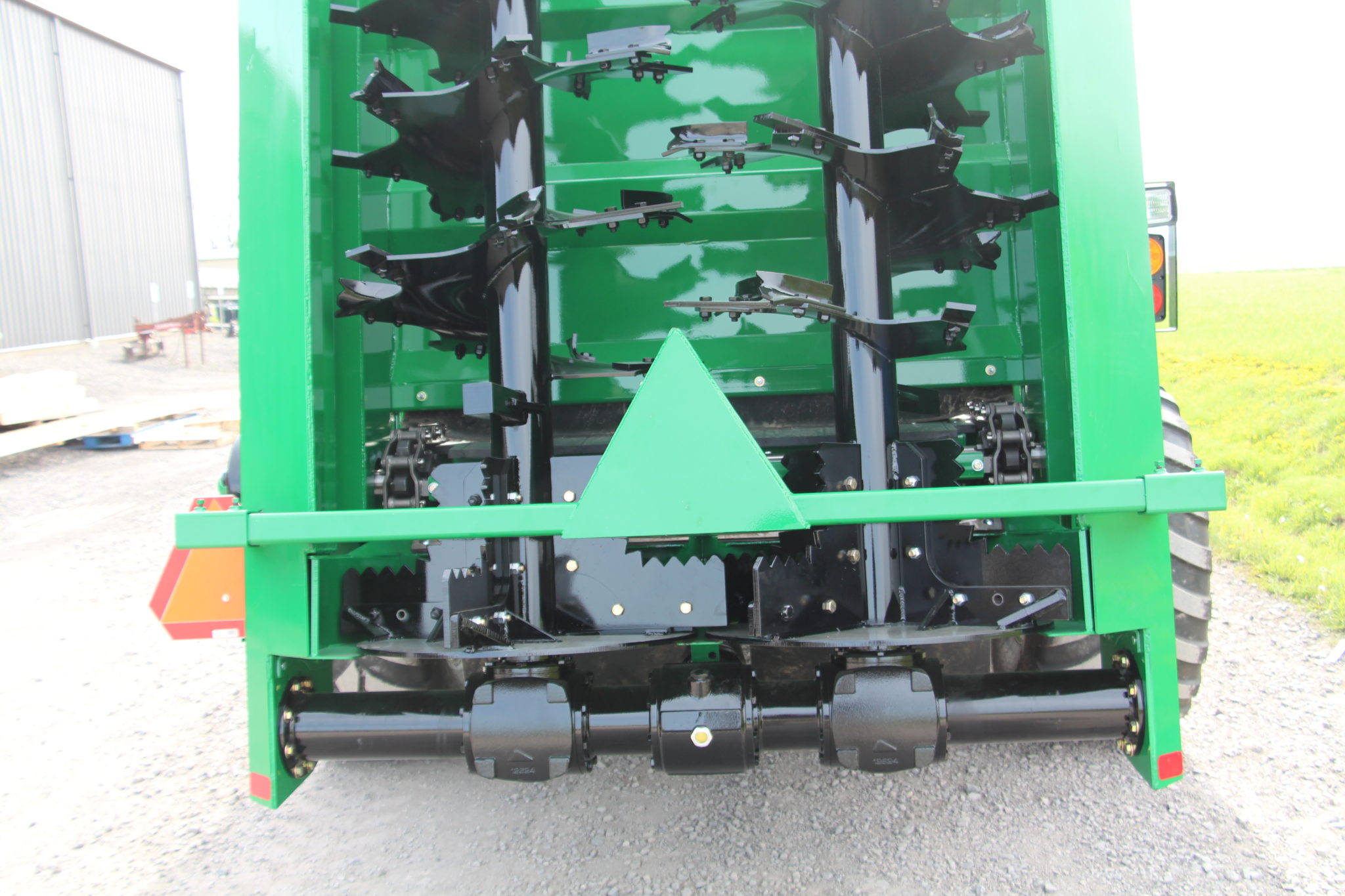

- Vertical beaters shred heavy material and provide a wide and consistent spread pattern
- Compost beaters spread light material in a wide pattern at a controlled rate
- Adjustable apron speed (0-16 ft. per min.)
- Heavy duty walking beams
- Road safety and field work lights
- Side wind jack w/ safety chain
- Robust pintle chain with stainless steel pins
- Limited lifetime chain warranty
- Spring loaded take-up bearings allow for chain flex without damage

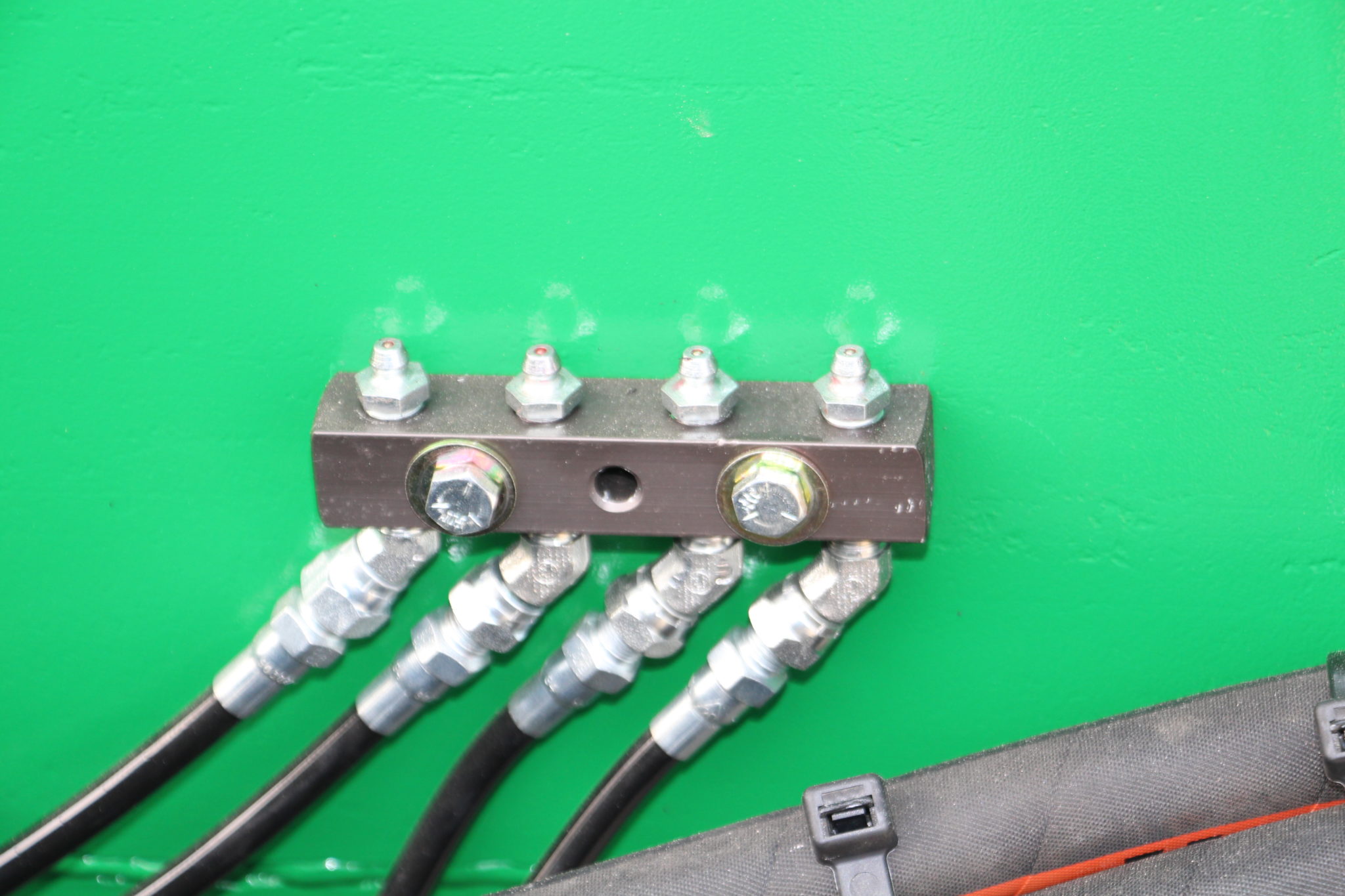

- All bearings have easy access grease fitting banks
- Sloped sides allow for easier loading
- Hydraulic metering end gate contains free flowing material
- Available in traditional green, red, black, blue, or industrial yellow
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 380 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Features
•16.6 ton load carrying capacity
•Direct drive beater system
•Heavy duty pintle chain
•Metering guillotine endgate
•Quick detach beaters (interchangeable for compost or vertical beaters)
•Weigh scale installation ready
•Flared sides with optional side extensions
•Clutch protected drivelines (slip/over-run)
•Proudly made in the USA!
Specifications
Load carrying capacity16.6 tons
| Struck Level ASAE S324.1 | 425 cu. ft. |
| Heaped SAE S324.1 | 622 cu. ft. |
| Heaped w/ optional side extenions ASAE S324.1 | 738 cu. ft. |
| Depth of box, inside | 47″ |
| Width of box, inside | 63″ / 84″ |
| Length of box, inside | 18′ |
| Overall width w/ truck tires | 9′ 4″ (425/65R22.5) |
| Overall width w/ flotation tires | 9’ 9” (500/50-22.5) |
| Overall height | 10′ 3” |
| Overall length | 27’ 6″ |
| Loading height | 95” |
| Beater speed | 420 RPM |
| Number of beaters | 2 |
| Paddles per beater | 29 |
| Fan diameter | 35.5″ |
| Tractor PTO HP (min.) | 150 HP |
| Unloading speeds | Infinite from 0-21’/min. |
| PTO speed | 1000 |
| PTO shaft diameter | 1 3/8” (1 3/4′) |
| Endgate cylinders | 2 |
| Tare weight | 13,140 lbs. |
