Overview

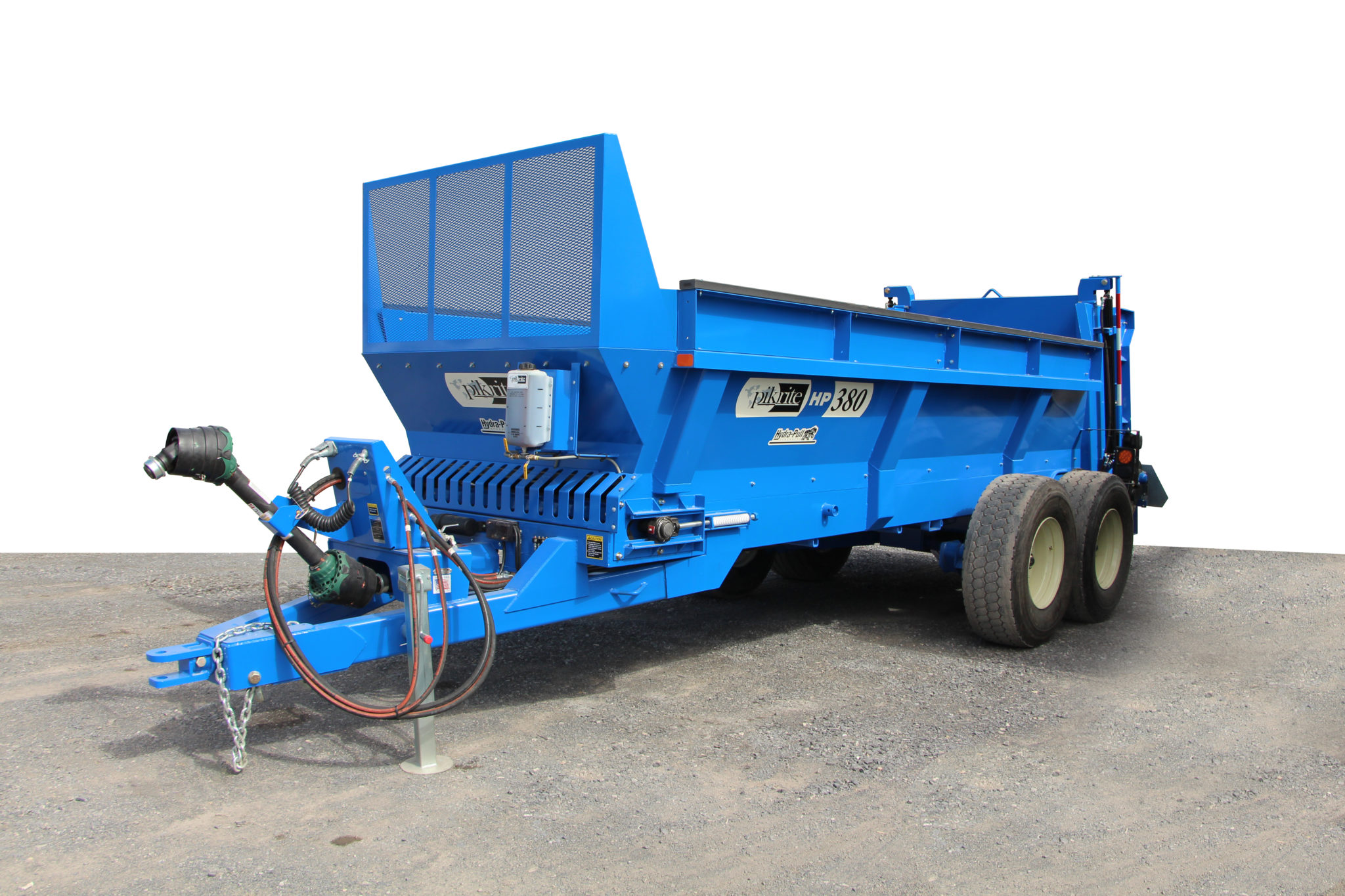

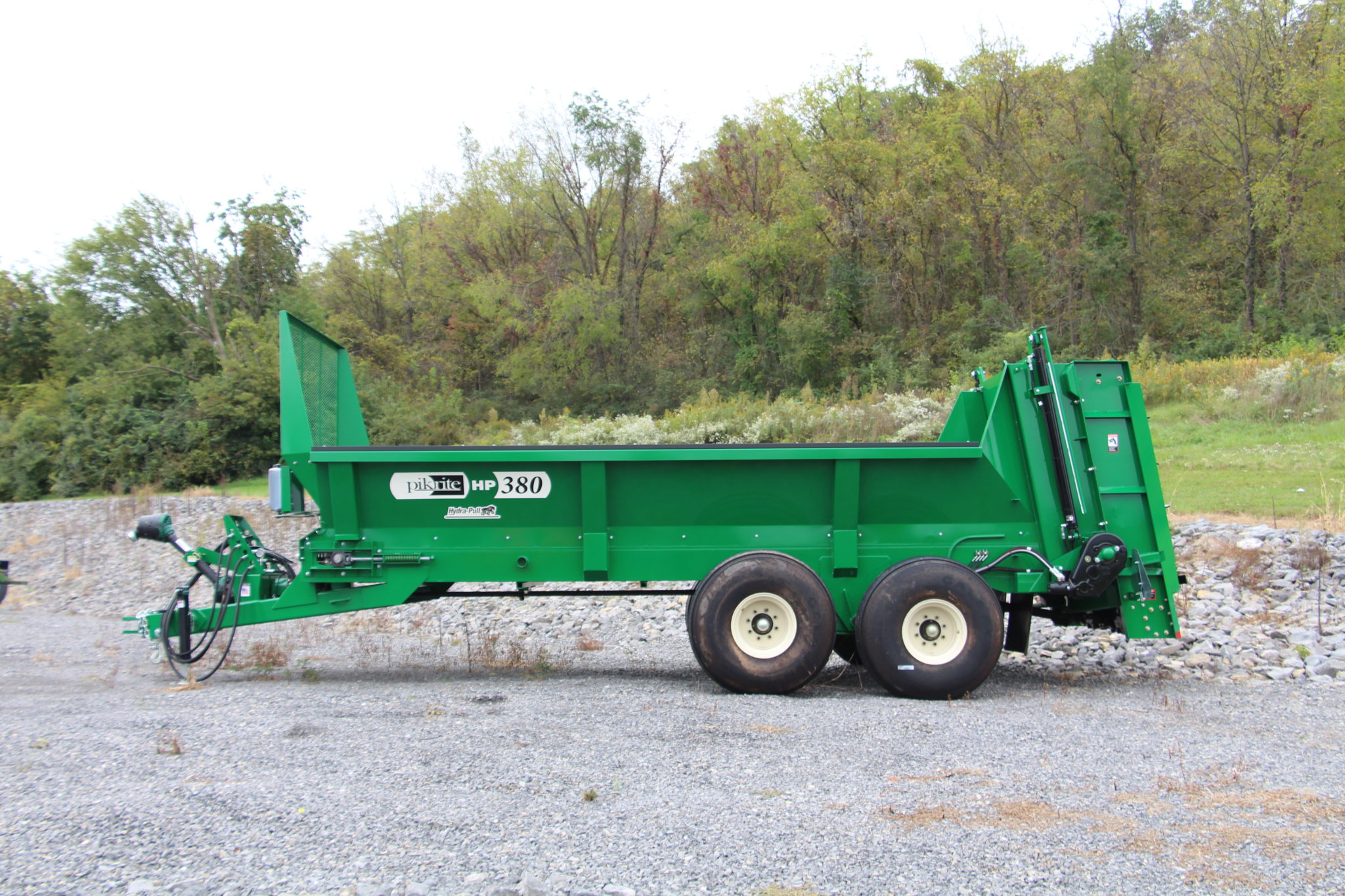

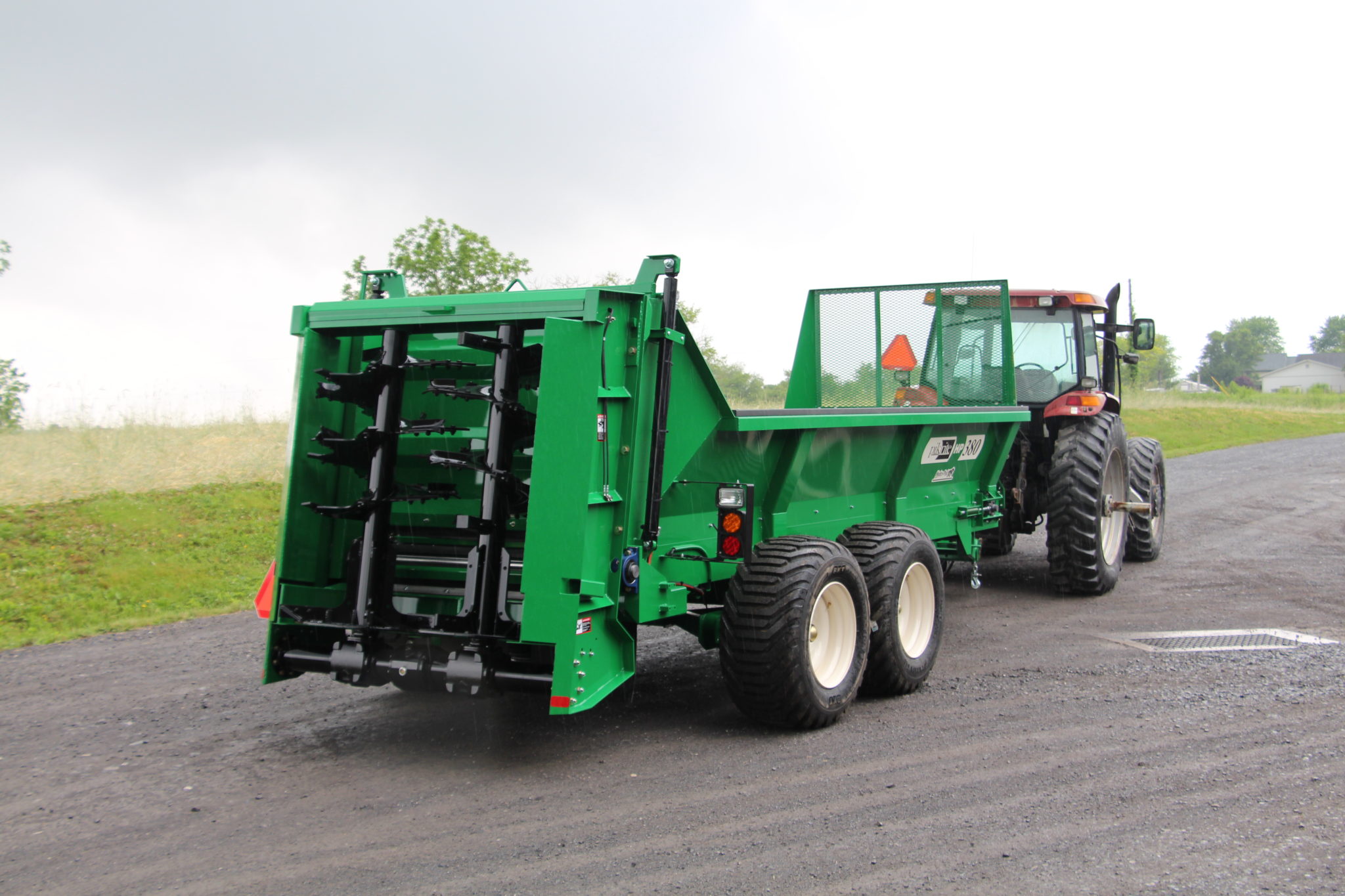

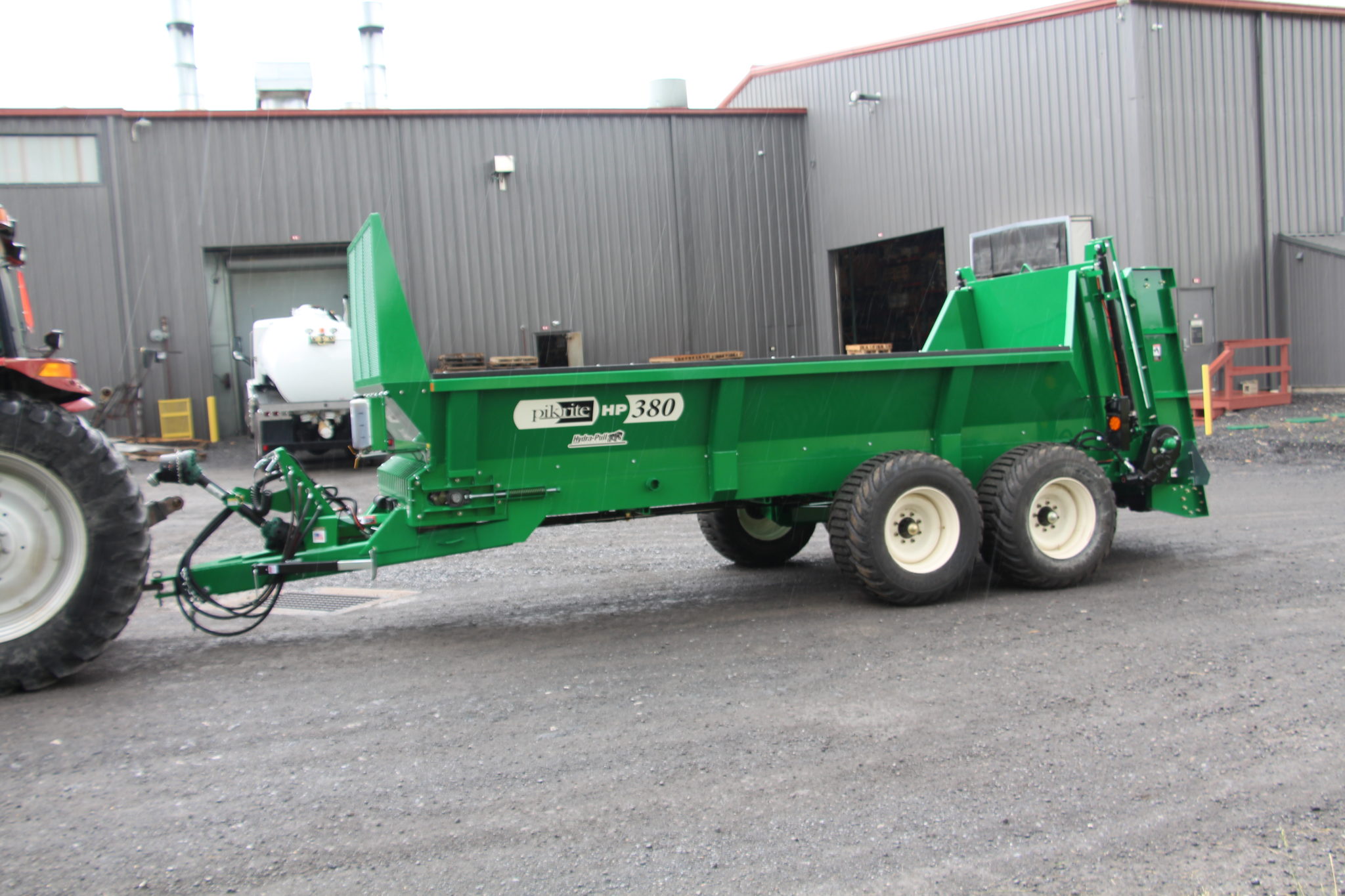

This 380 bushel is the smallest of the Hydra-Pull series, but has all the same great features of the larger HP 500!
Efficient
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 380 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Efficient

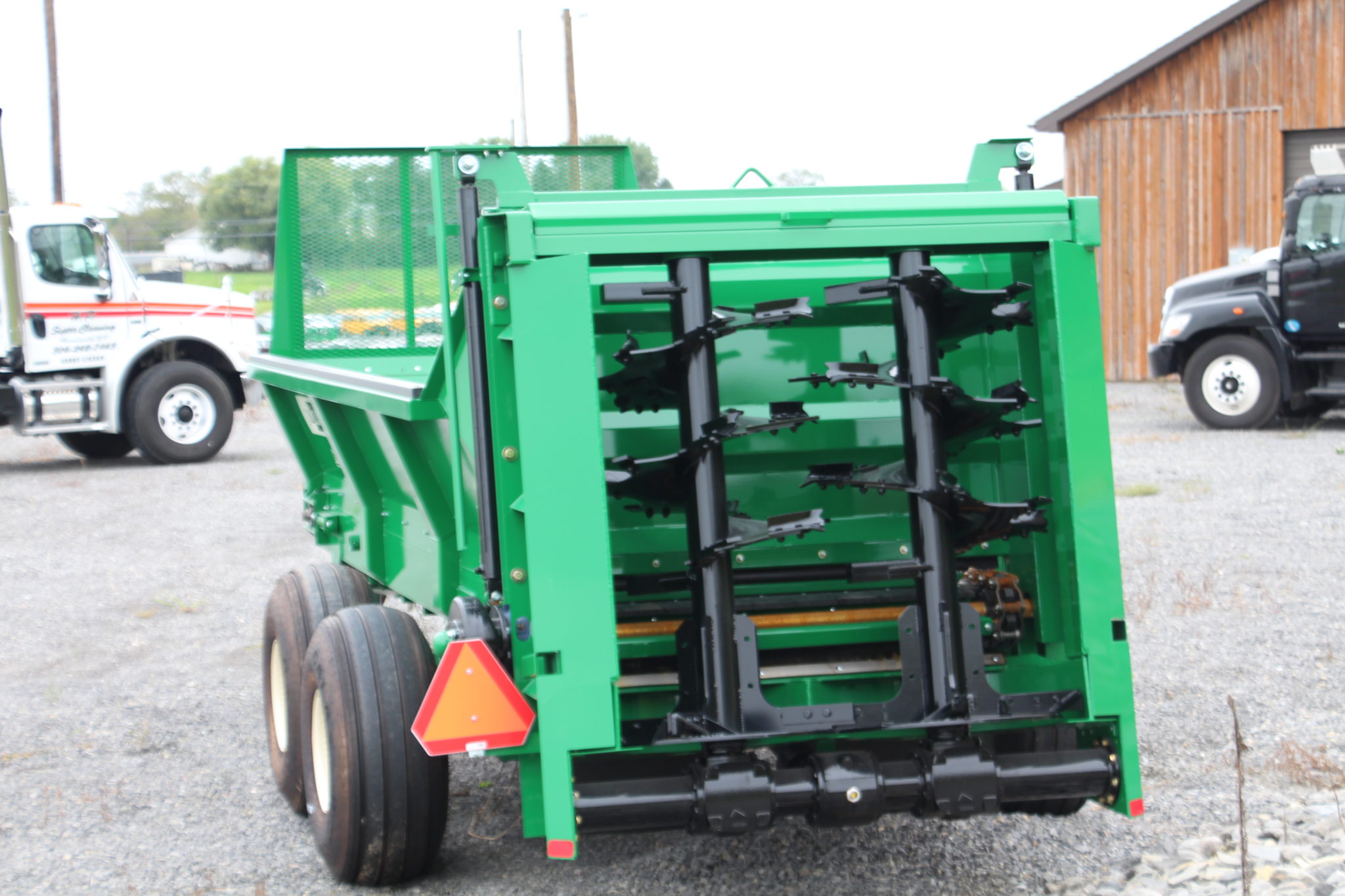

- Vertical beaters shred heavy material and provide a wide and consistent spread pattern
- Compost beaters spread light material in a wide pattern at a controlled rate
- Adjustable apron speed (0-16 ft. per min.)
- Heavy duty walking beams
- Road safety and field work lights
- Robust pintle chain with stainless steel pins
- Limited lifetime chain warranty
- Side wind jack w/ safety chain
- Spring loaded take-up bearings allow for chain flex without damage
- All bearings have easy access grease fitting banks
- Sloped sides allow for easier loading
- Hydraulic metering end gate contains free flowing material
- Available in traditional green, industrial yellow, red or blue
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 380 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Features
- 380 bushel capacity
- Direct drive beater system
- Heavy duty pintle chain
- Limited lifetime chain warranty
- Metering guillotine endgate
- Quick detach beaters (interchangeable for compost or vertical beaters)
- Weigh scale installation ready
- Flared sides with optional side extensions
- Clutch protected drivelines (slip/over-run)
- Proudly made in the USA!
Specifications
| Struck Level ASAE S324.1 | 276 cu. ft. |
| Heaped SAE S324.1 | 427 cu. ft. |
| Heaped w/ optional side extenions ASAE S324.1 | 543 cu. ft. | Load carrying capacity | 11.5 tons |
| Depth of box, inside | 28″ |
| Width of box, inside | 63″ / 84″ |
| Length of box, inside | 18′ |
| Overall width w/ truck tires | 9′ 4″ (425/65R22.5) |
| Overall width w/ flotation tires | 9’ 7” (500/50-22.5) |
| Overall height | 9′ 8” |
| Overall length | 27’ 5″ |
| Loading height | 75” |
| Beater speed | 420 RPM |
| Number of beaters | 2 |
| Paddles per beater | 25 |
| Fan diameter | 35.5″ |
| Tractor PTO HP (min.) | 100 HP |
| Unloading speeds | Infinite from 0-21’/min. |
| PTO speed | 1000 |
| PTO shaft diameter | 1 3/8” (1 3/4′) |
| Endgate cylinders | 2 |
| Tare weight | 11,500 lbs. |
