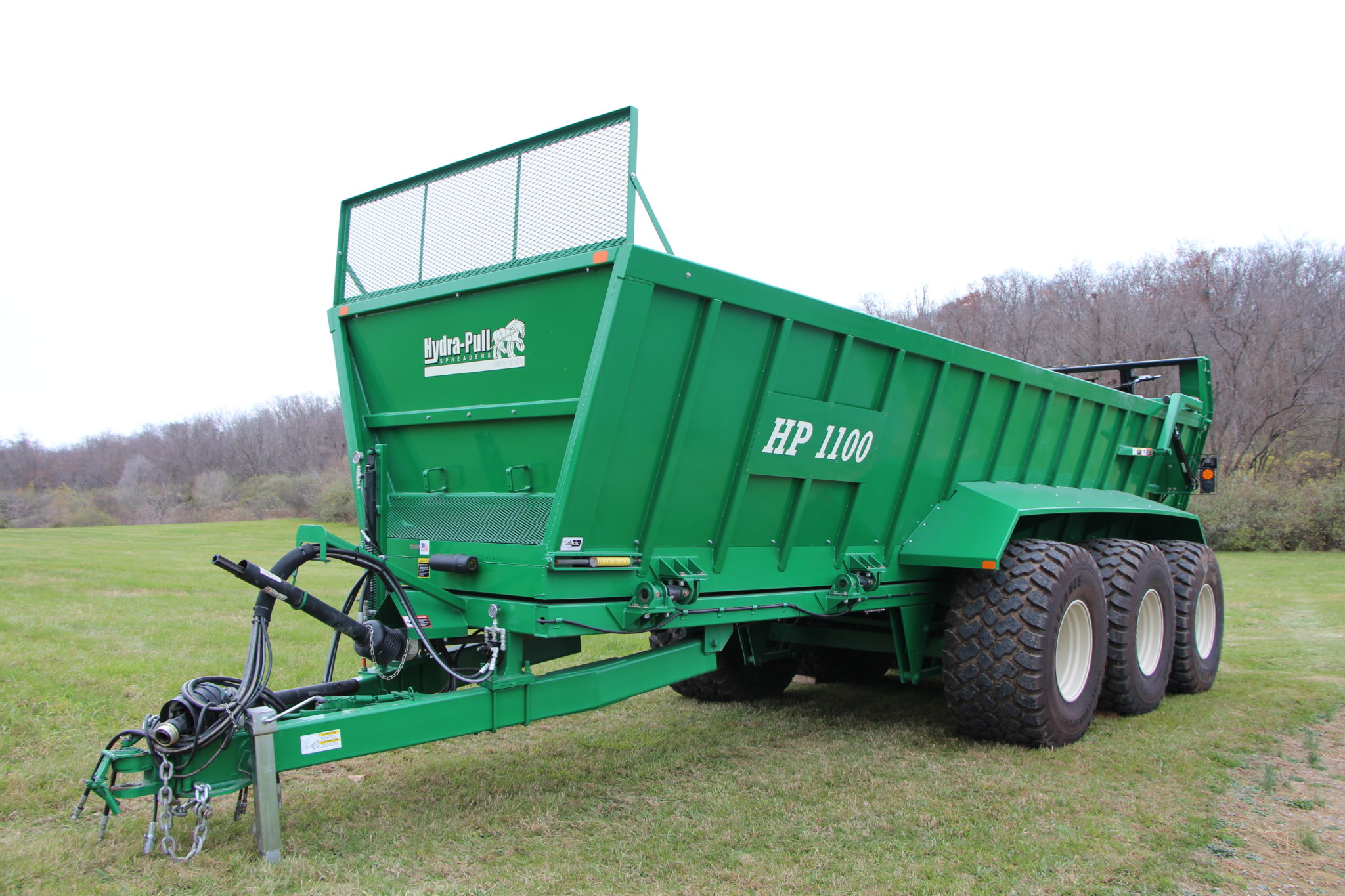

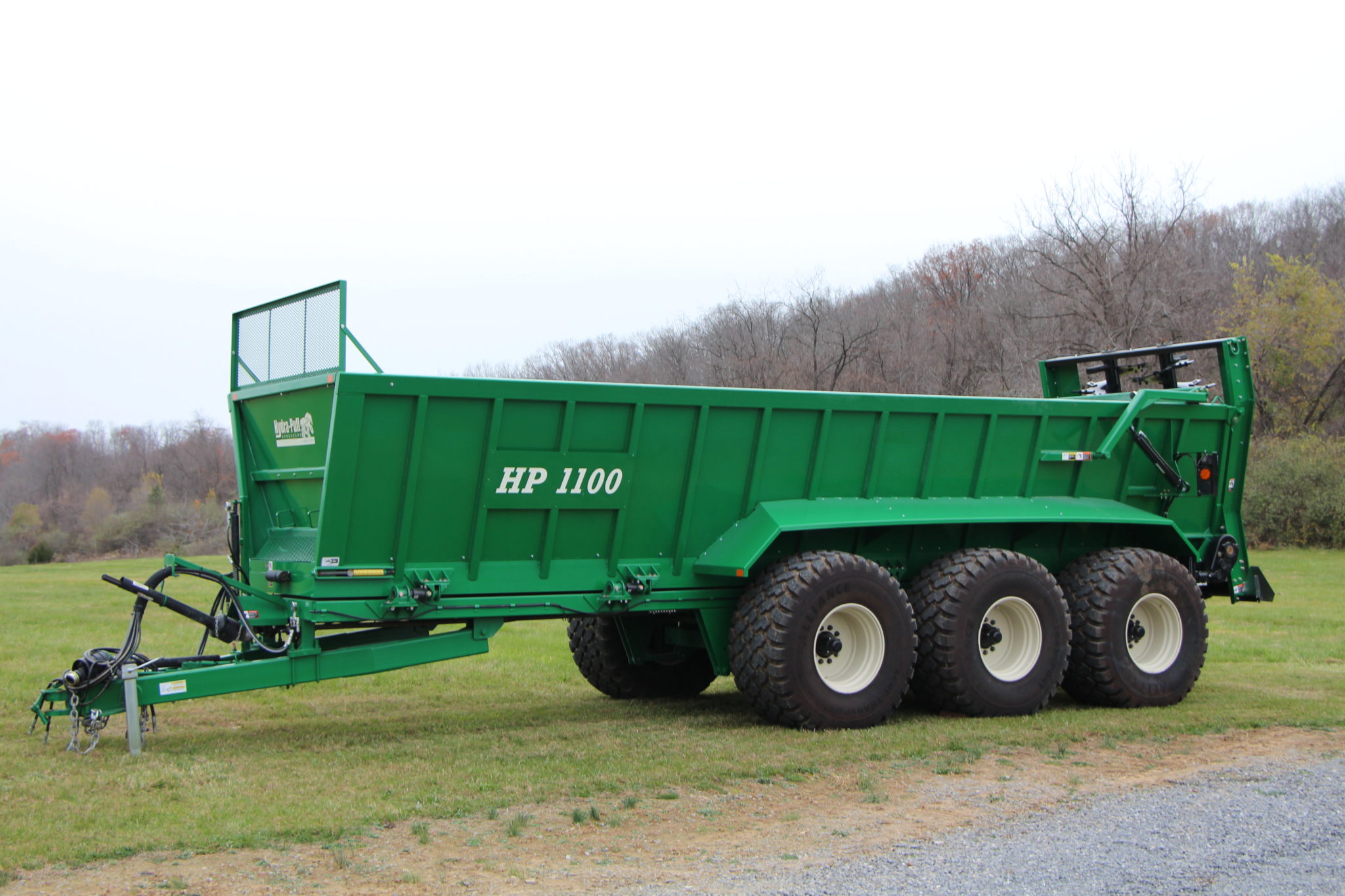

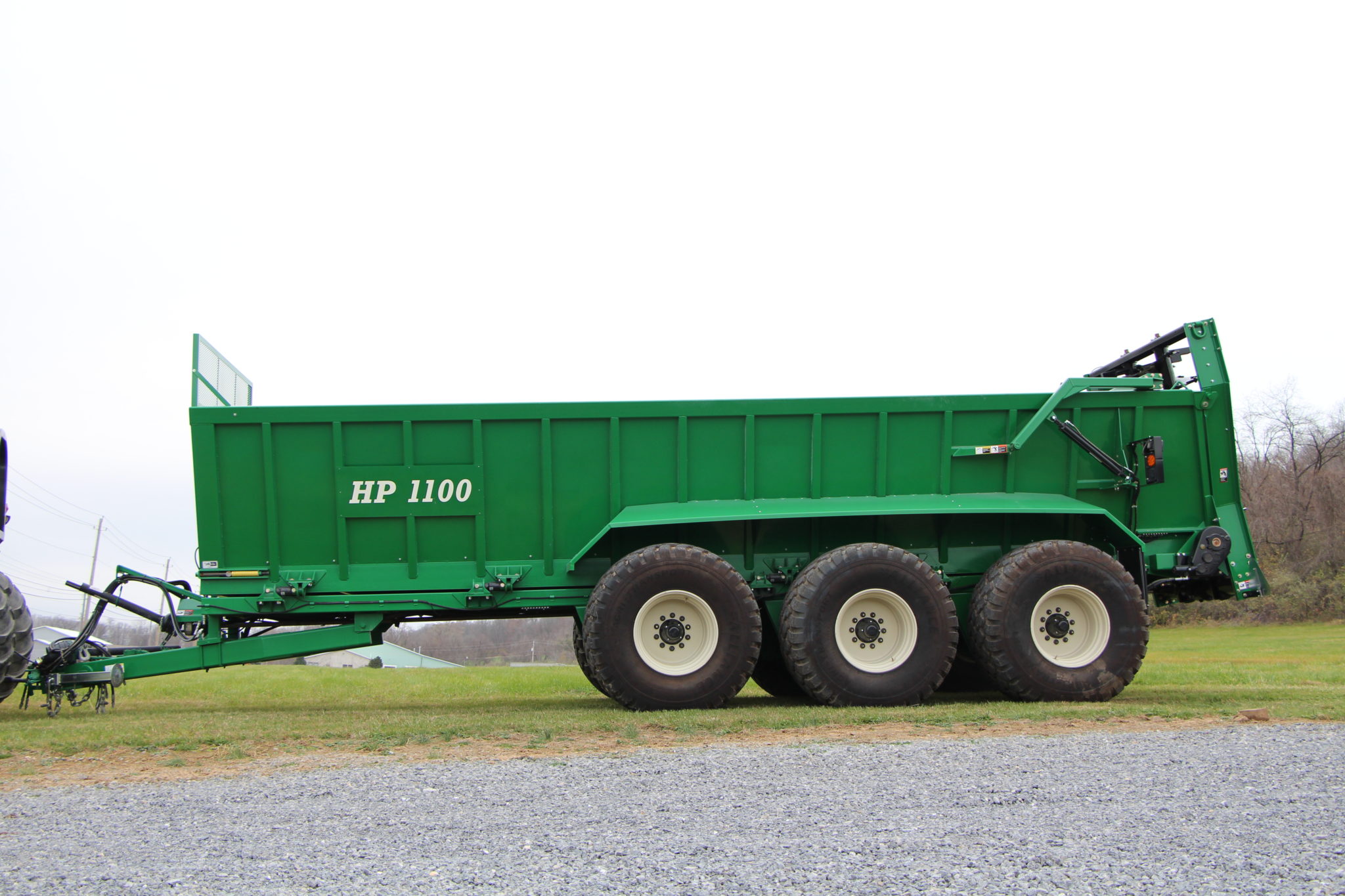

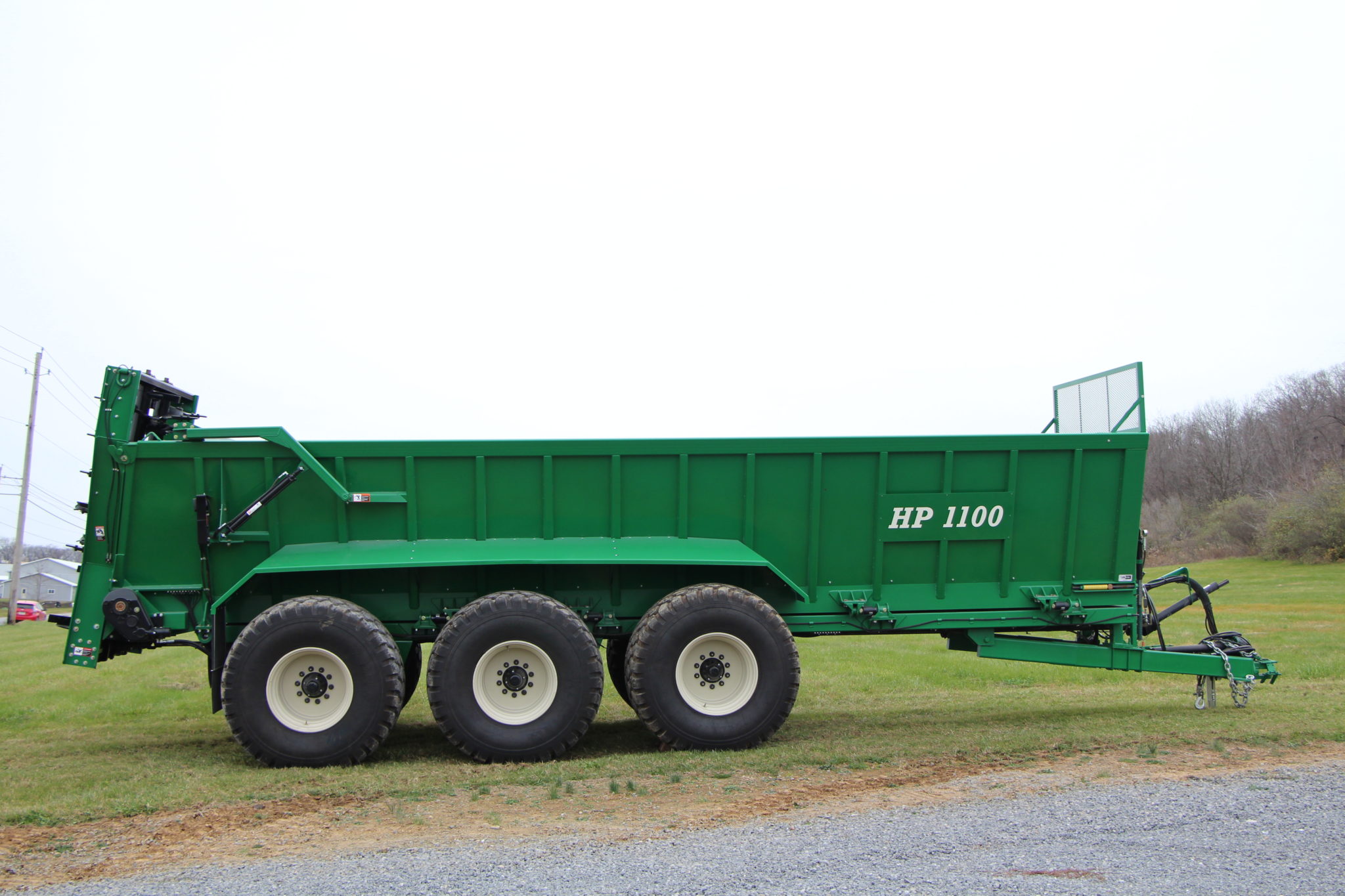

The HP 1100 is our largest spreader. It redefines capacity and versatility standards!
Efficient
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 1100 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Efficient

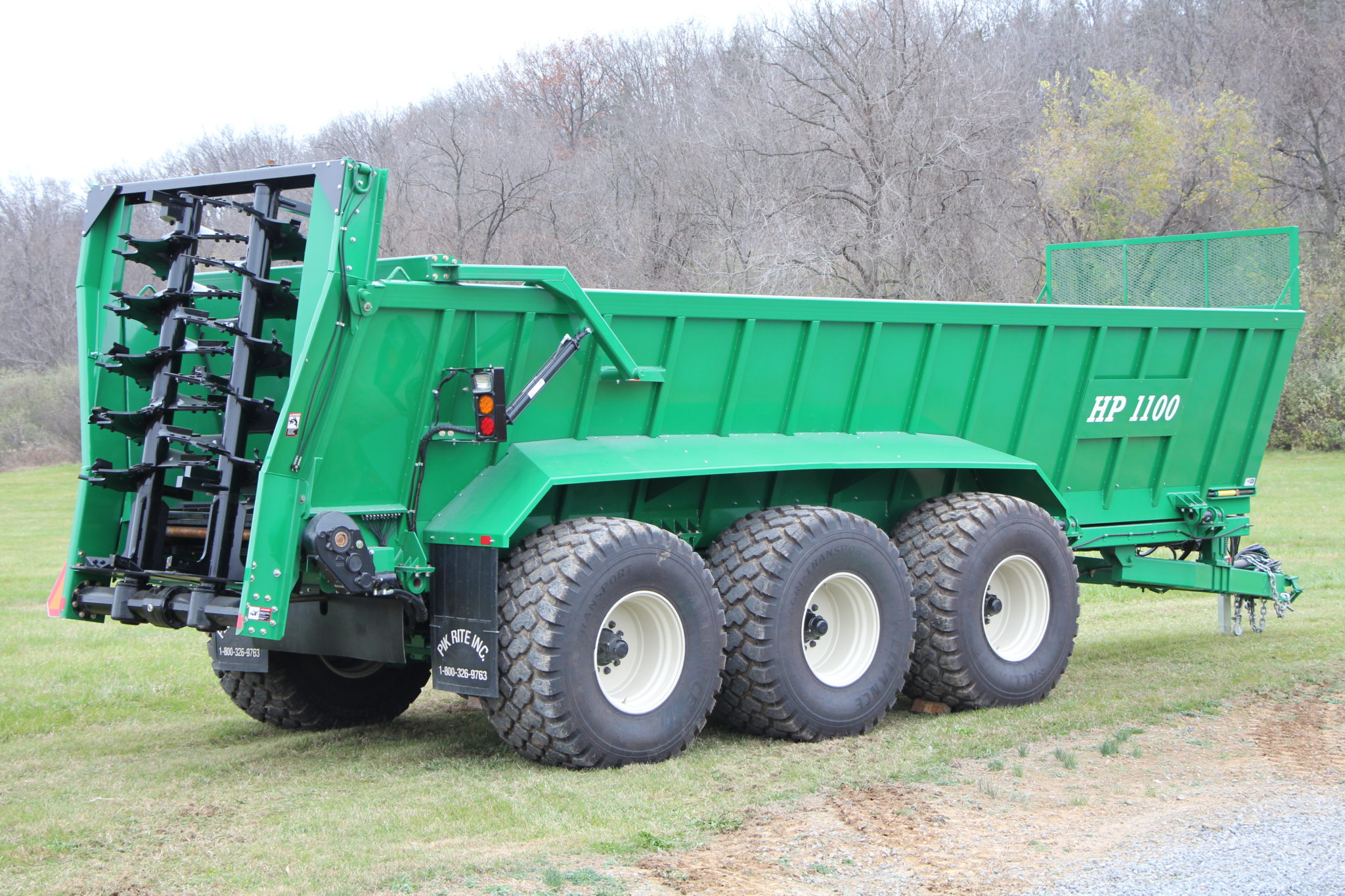

- Vertical beaters shred heavy material and provide a wide and consistent spread pattern
- Compost beaters spread light material in a wide pattern at a controlled rate
- Adjustable apron speed (0-16 ft. per min.)
- Heavy duty walking beams

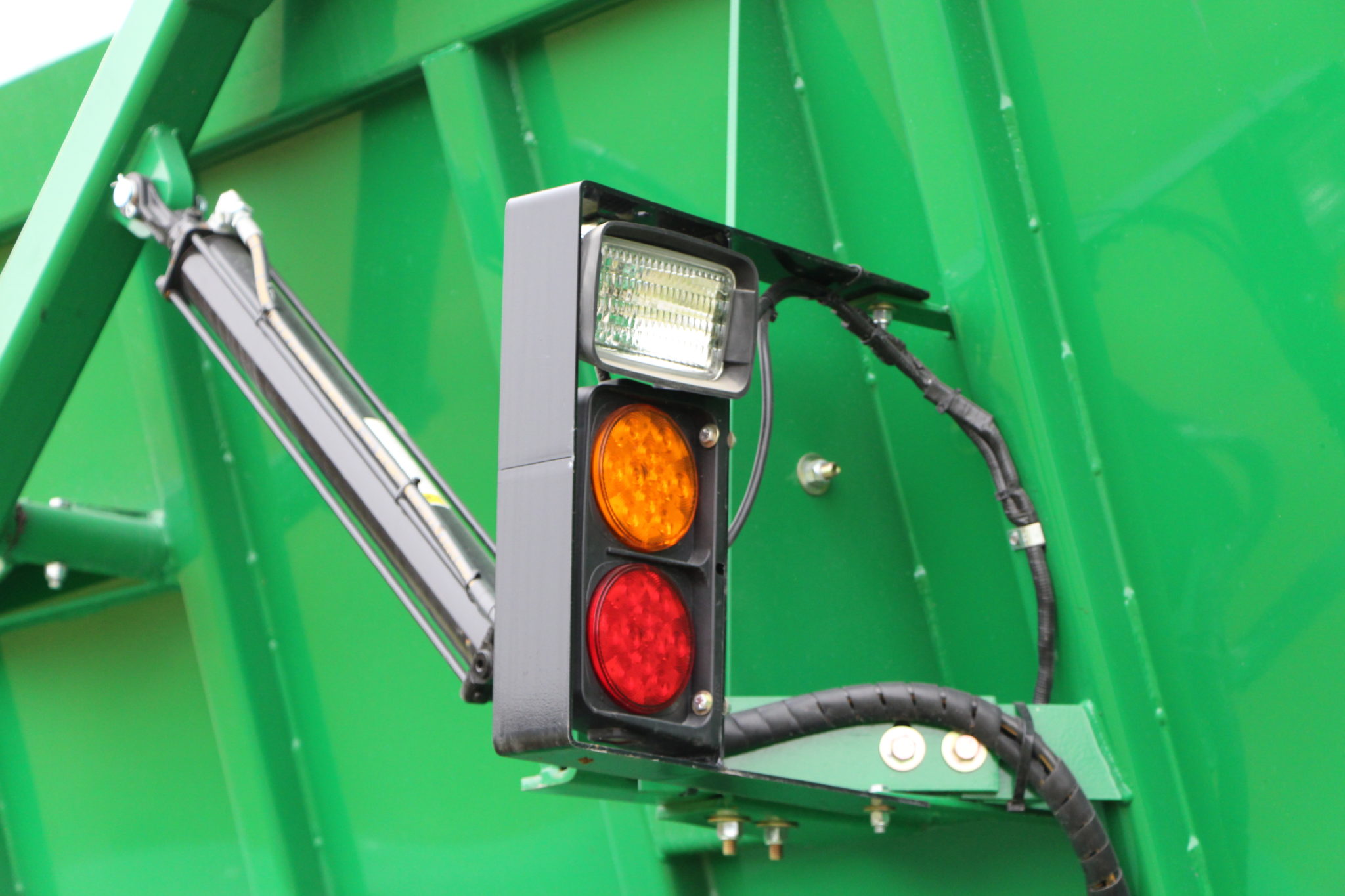

- Road safety and field work lights
- Side wind jack w/ safety chain
- Robust pintle chain with stainless steel pins
- Limited lifetime chain warranty
- Spring loaded take-up bearings allow for chain flex without damage
- All bearings have easy access grease fitting banks
- Sloped sides allow for easier loading
- Hydraulic metering end gate contains free flowing material
- Available in traditional green, red, black, blue or industrial yellow
CHAIN WARRANTY DETAILS
For more information or to purchase the Pik Rite HP 1100 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
Features
- 30 ton load carrying capacity
- GEA tri-axle chassis, lift axle, front & rear steering
- Detach beaters for high capacity forage wagon
- Direct drive beater system
- Heavy duty pintle chain
- Metering guillotine endgate
- Quick detach beaters (interchangeable for compost or vertical beaters)

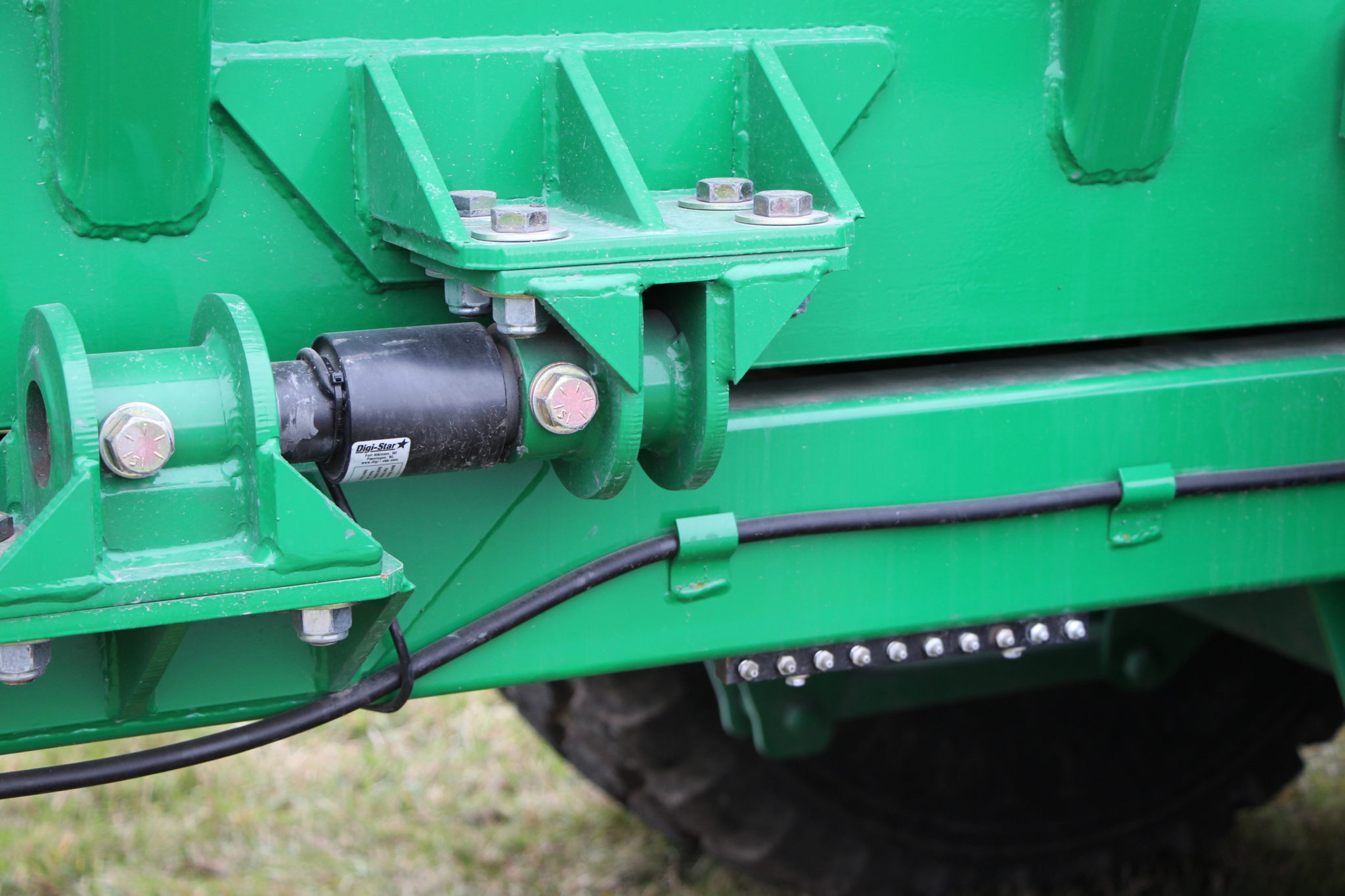

- Weigh scale installation ready
- Flared sides with optional side extensions
- Clutch protected drivelines (slip/over-run)
- Proudly made in the USA!
Specifications
| Struck Level ASAE S324.1 | 890 cu. ft. |
| Heaped SAE S324.1 | 1,370 cu. ft. |
| Heaped w/ optional side extensions ASAE S324.1 | 1,870 cu. ft. (silage only) |
| Load carrying capacity | 30 tons |
| Depth of box, inside | 54″ |
| Width of box, inside | 60″ / 96″ |
| Length of box, inside | 28′ 2″ |
| Overall width w/ flotation tires | 11’ 6” (28L R26) |
| Overall height | 11’ 11″ |
| Overall length | 38’ 4″ |
| Loading height | 9′ 6″ |
| Beater speed | 420 RPM |
| Number of beaters | 2 |
| Paddles per beater | 39 |
| Fan diameter | 35.5″ |
| Tractor PTO HP (min.) | 250 HP |
| Unloading speeds | Infinite from 0-21’/min. |
| PTO speed | 1000 |
| PTO shaft diameter | 1 3/4″ |
| Endgate cylinders | 2 |
| Tare weight | 26,500 lbs. |
