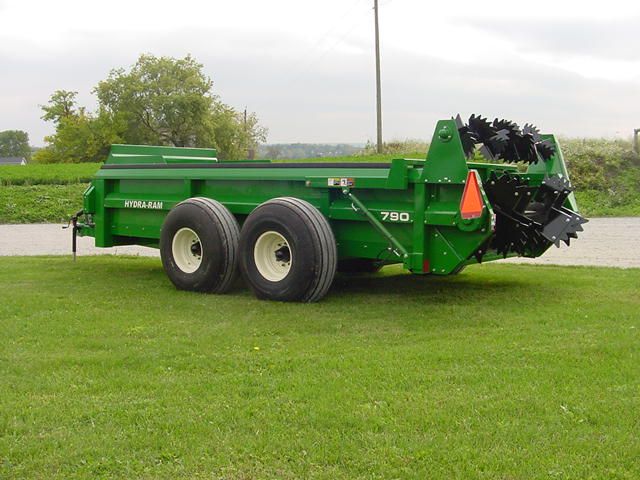

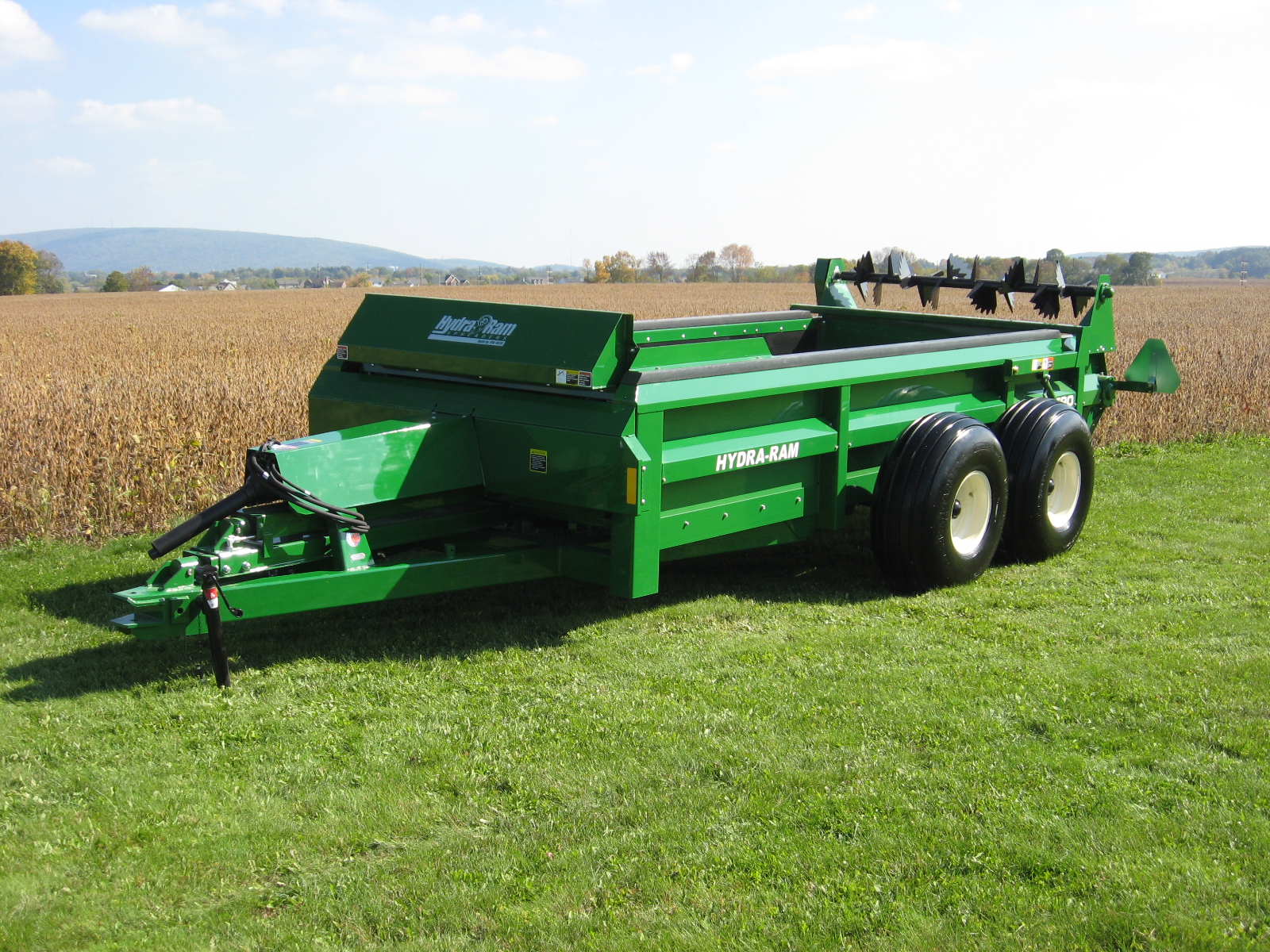

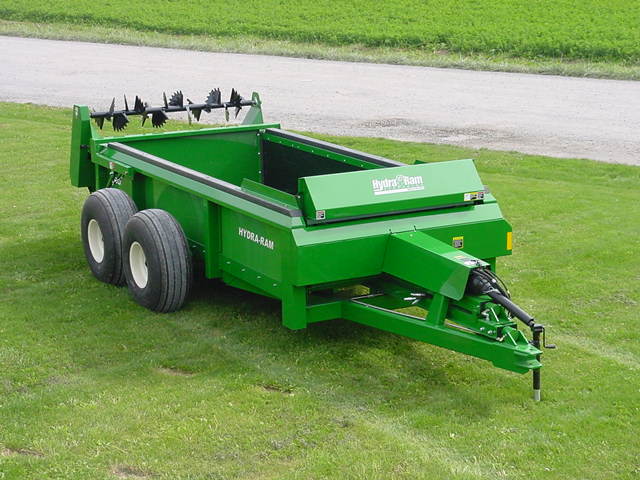

Superior performance and endurance are hallmarks of the scientifically-designed Pik Rite Hydra-Ram 790 manure spreader.
Efficient
•Two-stage push to decrease compaction
•Road safety and field work lights
Durable
•Side wind jack w/ safety chain
•Polylaminate floor & sides
•Stainless steel hydraulic tubing
Operator Friendly
•All bearings have easy access grease fitting banks
•Hydraulic metering end gate contains free flowing material
•Available in traditional green, black, red, blue or industrial yellow
For more information or to purchase the Pik Rite HR 790 Spreader, please contact Pik Rite’s team at 800-326-9763 or sales@pikrite.com.
•11.5 ton load carrying capacity
•One of the original designs, it’s still a favorite of returning customers
•Horizontal beater system with optional upper beater
•Optional slurry pan
•Proudly made in the USA!
| Struck Level ASAE S324.1 | 249 cu. ft. |
| Heaped SAE S324.1 | 340 cu. ft. |
| Heaped w/ optional side extenions ASAE S324.1 | 390 cu. ft. | Load carrying capacity | 11.5 tons |
| Depth of box, inside | 32″ |
| Width of box, inside | 71″ |
| Length of box, inside | 14′ |
| Overall width w/ truck tires | 10′ 1″ (385/65R22.5) |
| Overall width w/ flotation tires | 10’ 2” (16.5×16.1) |
| Overall height w/ upper beater | 72” |
| Overall length | 24’ 11″ |
| Loading height | 57” |
| Top of moving panel | 64″ |
| Face of moving panel to beater center line | 16’ 2” |
| Beater speed (upper beater) | 337 RPM (294 RPM) |
| Number of beaters | 1 or 2 |
| Paddles per beater | 16 |
| Fan diameter (upper beater) | 32″ (16″) |
| Tractor PTO HP (min.) | 100 HP |
| Unloading speeds | Infinite from 0-16’/min. |
| PTO speed | 1000 or 540 |
| PTO shaft diameter | 1 3/8” |
| Endgate cylinders | 2 |
| Tare weight | 6,640 lbs. |
